SUSPENDED LINEAR with Adjustable DOWN LIGHT

The RANGO represents an architectural suspended linear light which can focus a series of down lights in various directions. Customisation of length, number of down lights, positioning of additional luminaire and variety of colours and material finishes makes this an excellent choice for specific locations.

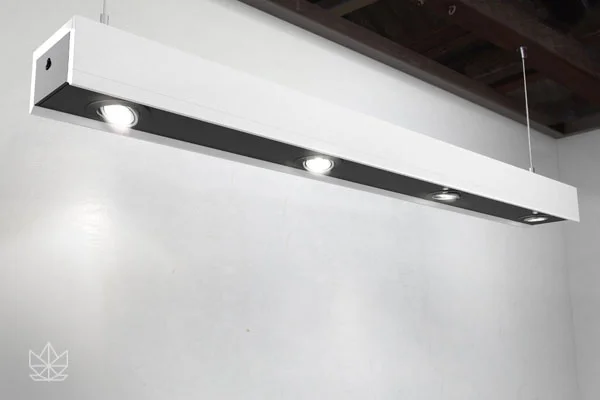

Rango Slimline

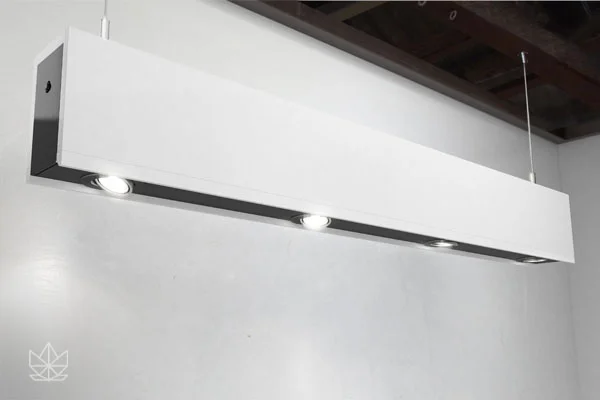

Rango

INSTALLATION

Wire suspension via friction locks secured to the luminaire. Wire suspensions included.

CONNECTION

Connects with 230 V, built-in LED driver. Cable entry at the top of the luminaire.

DESIGN

Luminaire body integral aluminium with timber exterior with a series of adjustable down lights. The RANGO can come in a variety of different colours.

RANGO

DIMMING

Luminaire equipped with on/off or 1-10V or DALI

LED-INFORMATION

2700K/3000K/4000K: Ra (CRI) min. 80
Beam angle 24°, 36°, 60°
80mm diameter/adjustable

LIGHTING CONTROLS

e-Sense Move / e-Sense Organic

DESIGNED BY

Duncan Beard

Rango Slimline

View Spec Sheet


     RANGO


    IES
    MODULE
    LM
    W
    CRI
    CCT
    WHITE
    BLACK
    TIMBER


    IES
    600mm x 2DL
    650 x 2
    6x2
    >80
    2700K
    BM-4001
    BM-4002
    BM-4003_timber


    IES
    600mm x 2DL
    650 x 2
    6x2
    >80
    3000K
    BM-4004
    BM-4005
    BM-4006_timber


    IES
    600mm x 2DL
    650 x 2
    6x2
    >80
    4000K
    BM-4007
    BM-4008
    BM-4009_timber



    IES
    1200mm x 4DL
    650 x 4
    6x4
    >80
    2700K
    BM-4010
    BM-4011
    BM-4012_timber


    IES
    1200mm x 4DL
    650 x 4
    6x4
    >80
    3000K
    BM-4013
    BM-4014
    BM-4015_timber


    IES
    1200mm x 4DL
    650 x 4
    6x4
    >80
    4000K
    BM-4016
    BM-4017
    BM-4018_timber



    MODULE
    WEIGHT
    LIGHT SOURCE
    BALLAST


    600
    3.0kg
    LED
    Driver included - Integral


    1200
    5.0kg
    LED
    Driver included - Integral
