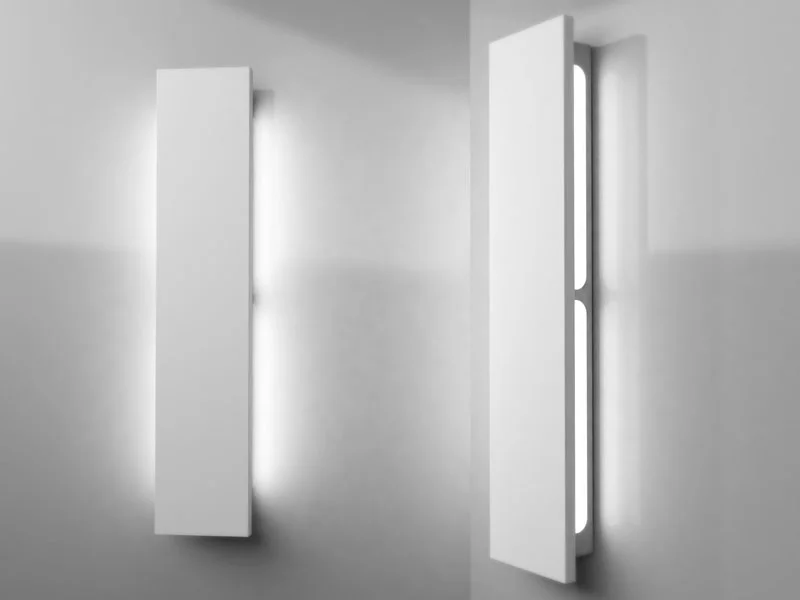

Fixed Rectangular surface wall light
The VEGA represents an architectural wall light that adds a unique presence to your space. A variety of options in lighting output, colour and materials, the possibilities are endless.
INSTALLATION
Two securing holes for hanging bracket.
CONNECTION
Connects with 230 V, built-in LED driver.
Cable entry at the rear of the luminaire.
DESIGN
Luminaire body in white aluminium with timber cover plate.
DIMMING
Luminaire equipped with on/off or DSI or DALI
LED-INFORMATION
3000/4000 K: Ra (CRI) min. 80,
MacAdam 3 SDCM.
Driver life-time: up to 50.000 h/10 %
(max failure).
DESIGNED BY
Duncan Beard
Create a look that is best for your space!
Customised colours and combinations

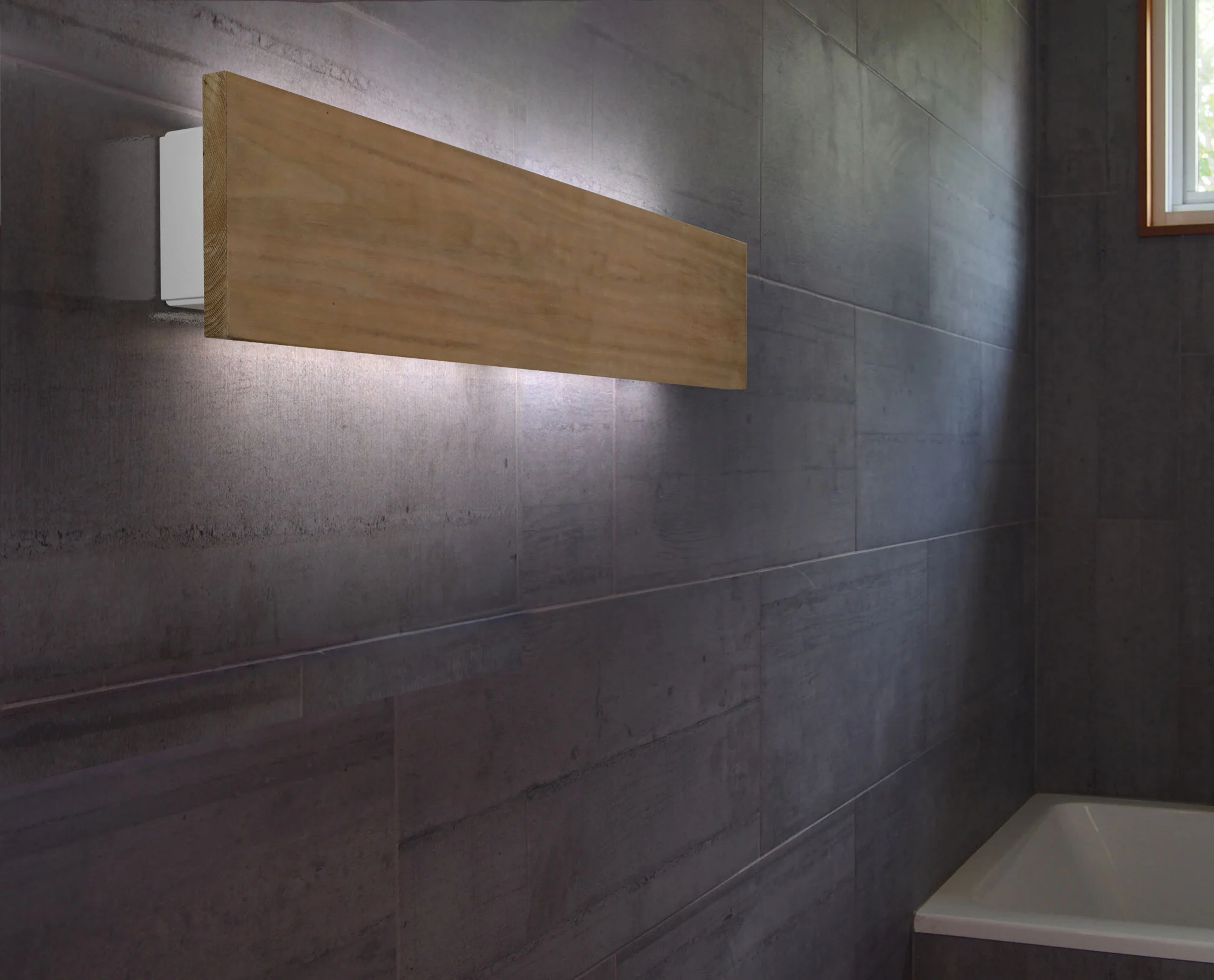

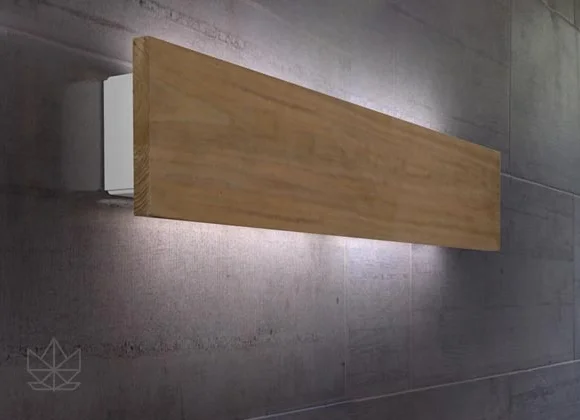

Various materials for finishes of the VEGA are available, (Cedar, pictured)
Customised lumen packages are available upon request
| VEGA | ||||||||
|---|---|---|---|---|---|---|---|---|
| IES | MODULE | LM | W | CRI | CCT | WHITE | BLACK | TIMBER |
| IES | 4400lm Up / Down |
650 x 2 | 26 | >80 | 2700K | BM-1001 | BM-1002 | BM-1003_timber |
| IES | 4400lm Up / Down |
650 x 2 | 26 | >80 | 3000K | BM-1004 | BM-1005 | BM-1006_timber |
| IES | 4400lm Up / Down |
650 x 2 | 26 | >80 | 4000K | BM-1007 | BM-1008 | BM-1009_timber |
| IES | 2200L Single direction |
650 x 4 | 13 | >80 | 2700K | BM-1010 | BM-1011 | BM-10012_timber |
| IES | 2200L Single direction |
650 x 4 | 13 | >80 | 3000K | BM-1013 | BM-1014 | BM-1015_timber |
| IES | 2200L Single direction |
650 x 4 | 13 | >80 | 4000K | BM-1016 | BM-1017 | BM-1018_timber |
| MODULE | WEIGHT | LIGHT SOURCE | BALLAST |
|---|---|---|---|
| 4400 | 3.0kg | LED | Driver Included |
| 2200 | 3.0kg | LED | Driver Included |
