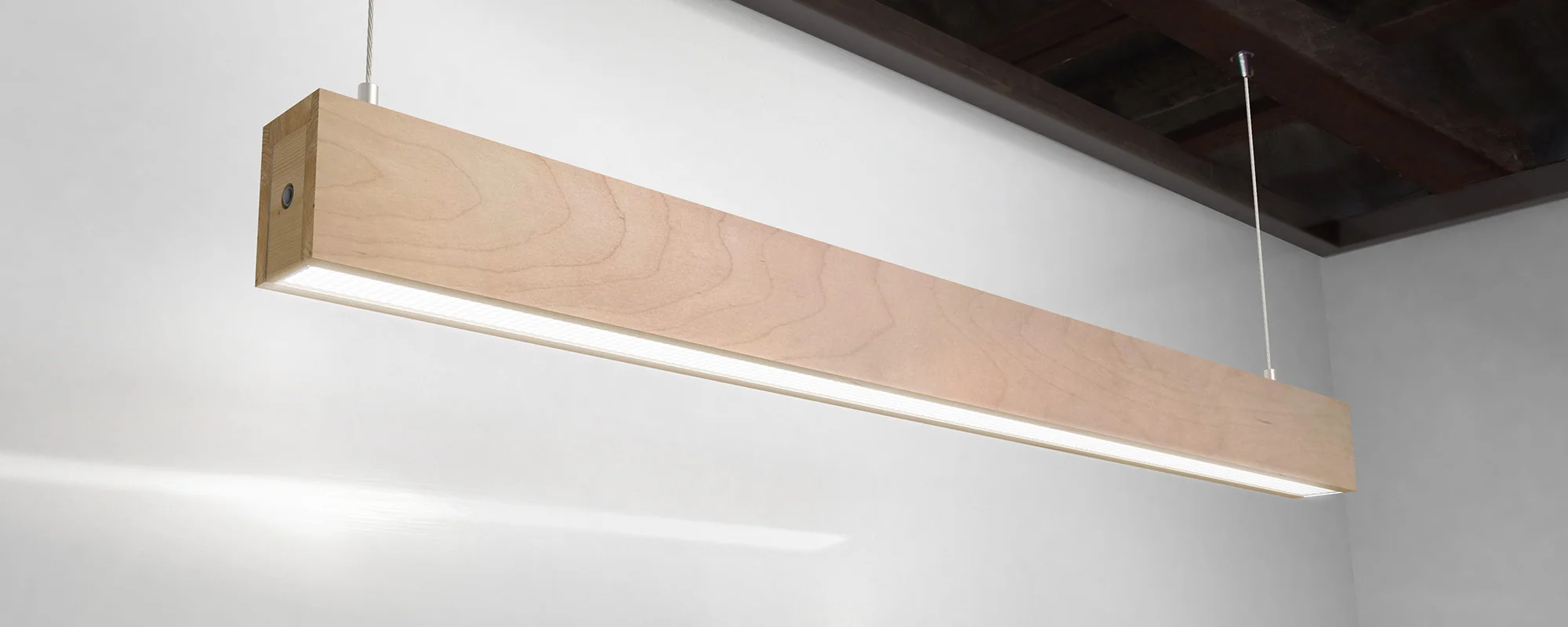

A SUSPENDED MOUNT LINEAR DOWN LIGHT
The KURTZ represents an architectural suspended linear light which adds a unique presence to your space. With a variety of different options in light output, colour or material, the possibilities are endless.
INSTALLATION
Wire suspension via friction locks secured to the luminaire. Wire suspensions included.
CONNECTION
Connects with 230 V, built-in LED driver. Cable entry at the top of the luminaire.
DESIGN
Luminaire body integral aluminium with timber exterior and a micro-prysmatic diffuser. The KURTZ can come in a variety of different colours
DIMMING
Luminaire equipped with on/off or DSI or DALI
LED- INFORMATION
3000/4000 K: Ra (CRI) min. 80,
MacAdam 3 SDCM.
Driver life-time: up to 50.000 h/10 % (max failure).
LIGHTING CONTROLS
e-Sense Move / e-Sense Organic
DESIGNED BY
Duncan Beard

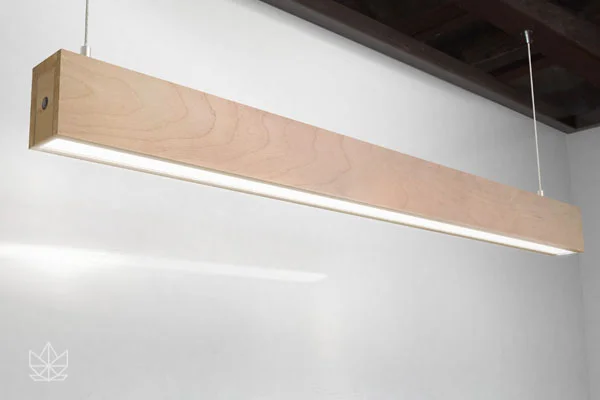

Kurtz

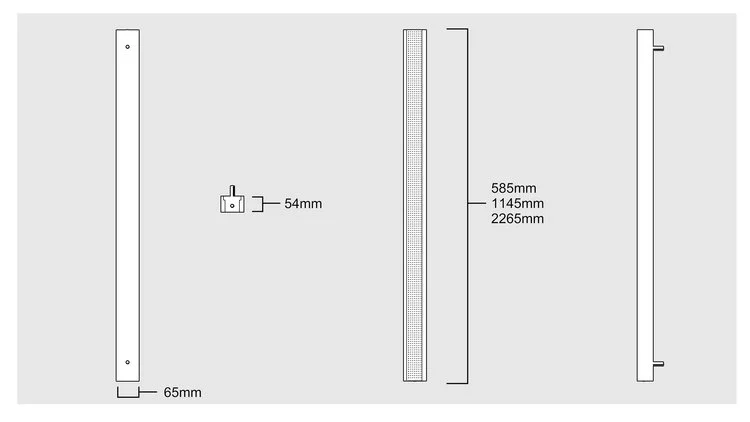

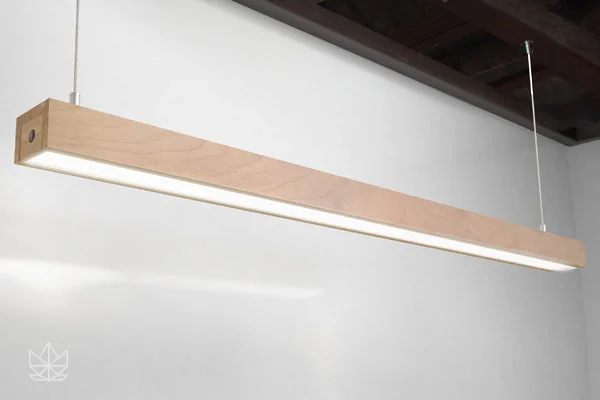

Kurtz Slimline
| KURTZ | ||||||||
|---|---|---|---|---|---|---|---|---|
| IES | MODULE | LM | W | CRI | CCT | WHITE | BLACK | TIMBER |
| IES | 585 | 2120 | 13 | >80 | 3000K | BM-2001 | BM-2002 | BM-2003_timber |
| IES | 585 | 2200 | 13 | >80 | 4000K | BM-2004 | BM-2005 | BM-2006_timber |
| IES | 1145 | 4220 | 26 | >80 | 3000K | BM-2007 | BM-2008 | BM-2009_timber |
| IES | 1145 | 4400 | 26 | >80 | 4000K | BM-2010 | BM-2011 | BM-20012_timber |
| IES | 2265 | 8800 | 52 | >80 | 3000K | BM-2013 | BM-2014 | BM-2015_timber |
| IES | 2265 | 8800 | 52 | >80 | 4000K | BM-2016 | BM-2017 | BM-2018_timber |
| KURTZ SLIMLINE | ||||||||
|---|---|---|---|---|---|---|---|---|
| IES | MODULE | LM | W | CRI | CCT | WHITE | BLACK | TIMBER |
| IES | 585 | 2120 | 13 | >80 | 3000K | BM-3001 | BM-3002 | BM-3003_timber |
| IES | 585 | 2200 | 13 | >80 | 4000K | BM-3004 | BM-3005 | BM-3006_timber |
| IES | 1145 | 4220 | 26 | >80 | 3000K | BM-3007 | BM-3008 | BM-3009_timber |
| IES | 1145 | 4400 | 26 | >80 | 4000K | BM-3010 | BM-3011 | BM-3012_timber |
| IES | 2265 | 8800 | 52 | >80 | 3000K | BM-3013 | BM-3014 | BM-3015_timber |
| IES | 2265 | 8800 | 52 | >80 | 4000K | BM-3016 | BM-3017 | BM-3018_timber |
| MODULE | WEIGHT | LIGHT SOURCE | BALLAST |
|---|---|---|---|
| 585 | 3.0kg | LED | Driver included - Integral |
| 1145 | 5.0kg | LED | Driver included - Integral |
| 2265 | 7.0kg | LED | Driver included - Integral |
CREATE A LOOK THAT IS BEST FOR YOUR SPACE
Customised colours and combinations
Various materials for finishes
Customised lumen packages available upon request.
Continuous run, customised corners and angles
Available in tuneable white.

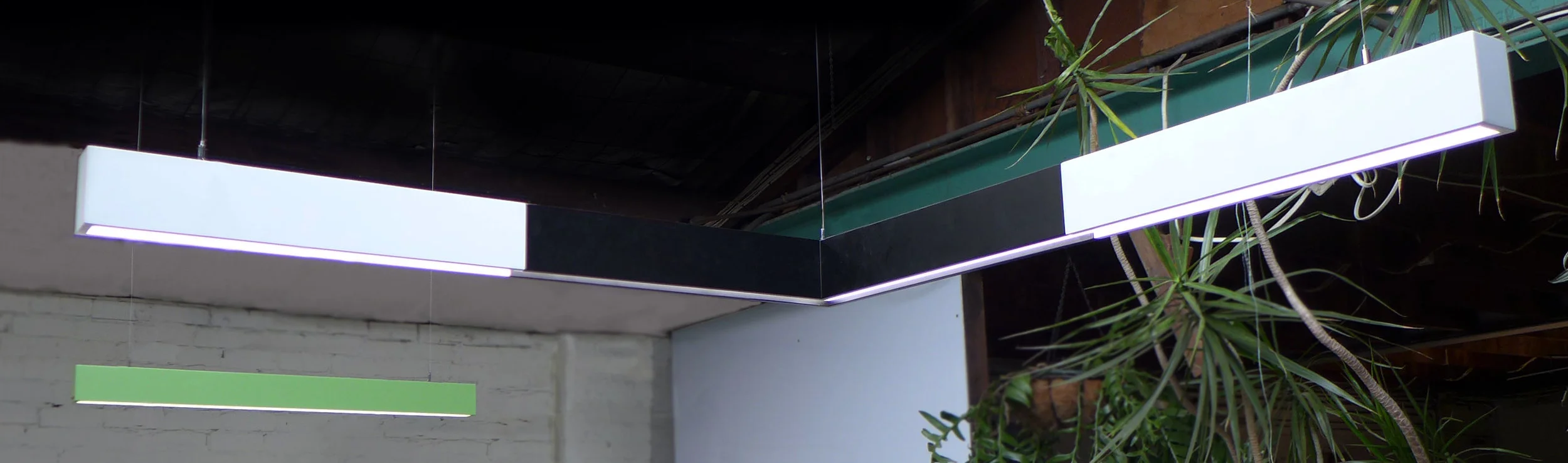

Kurtz colour options
